ESINO 10 slot 48v 72v battery swapping charging stations for

Model: ES-DG10

Date:2024-12-18 / Popularity: / Source:未知

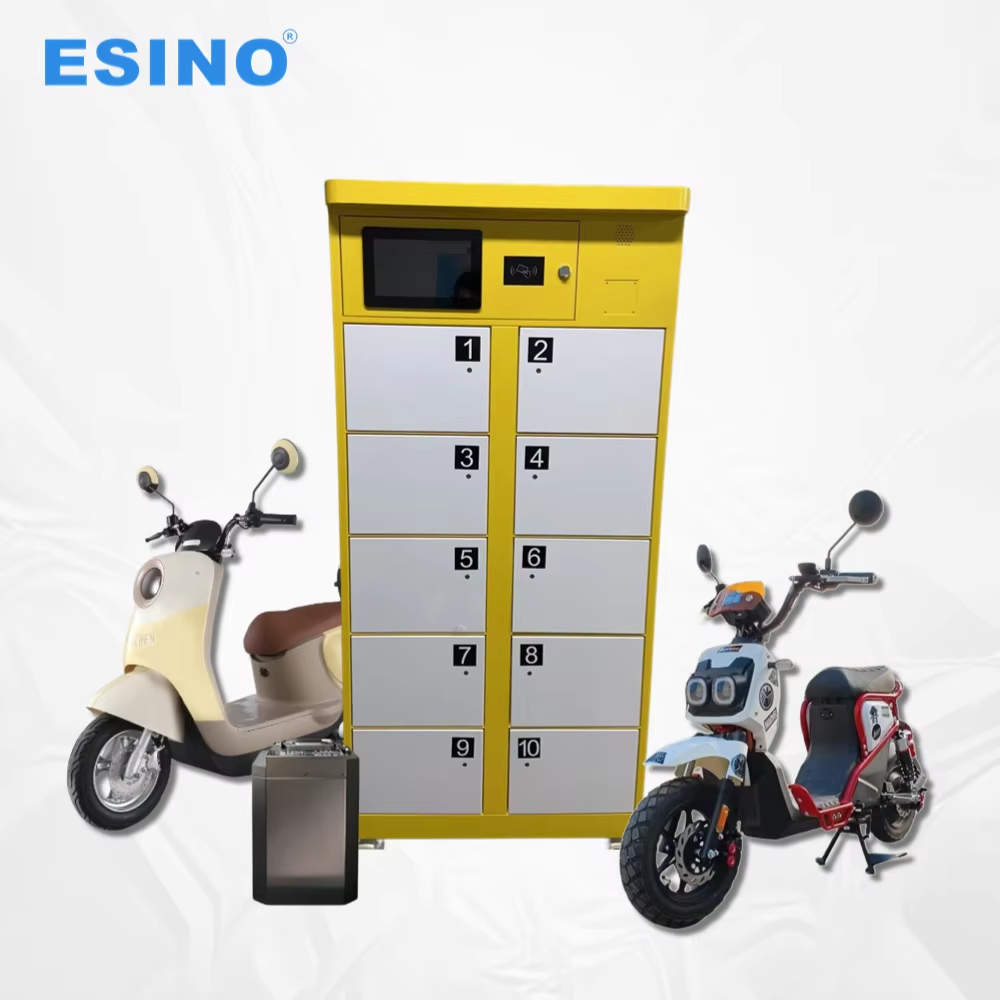

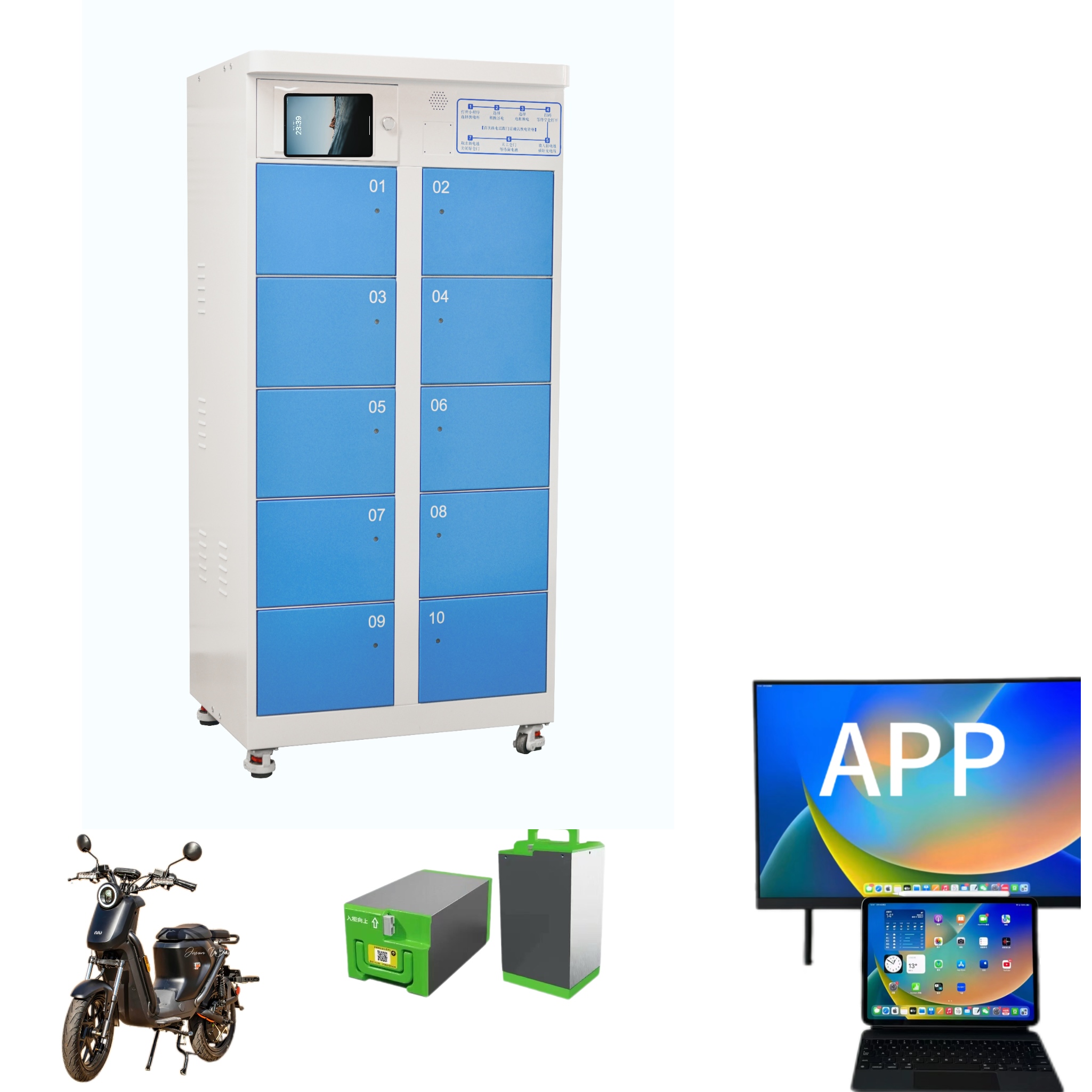

ESINO Swapping Charging Cabinet
MODEL ES-DG10
Specs Rated Power 9.6KW/800W each door
Charging System LCD Screen Size 10.1inch (Optional)
  Door Size 25*26*43CM
  Cabinet Size 82*60*174CM
  Input Voltage AC220V
  Charging Connector Type 2+4/2+6 Connector
  Output Voltage 43~87VDC
  Weight 148KG
  Output Current 10A
  Fire Protection Independent Aerosol Fire Extinguishing for each cabin
Electrical Data Current Limit Protection Value ≥110%
  Stabilized Voltage Precision ≤±0.5%
  Stabilized Current Precision ≤±0.5%
  Ripple Factor ≤±0.5%
  Efficiency ≥98%
  Power Factor ≥0.99(50% Above load)
  Harmonic Content THD ≤5%(50% Above load)
  Charge Mode Scan QR Code
  Payment Method Scan Code Payment
  Networking 4G
  Safety Function Over voltage protection, under voltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, lightning protection.
Optional features: water immersion protection, hardware board power exchange, reverse power supply, Bluetooth power exchange
Environmental Indicators Operation Temperature -35°C ~ +55°C
  Working Humidity 5%~95% No Frost
  Working Altitude <2000m
  Protection Grade IP54
  Cooling Method Forced Air Cooling
  Noise Control ≤60dB
  MTBF 100,000 Hours


Company Profile



ESINO was founded in 2008 HongKong and with the headquarters in ShenZhen from 2011. We're committed to providing the highest-quality Swapping Cabinet and GPS BMS with the Cloud Server.Be a Chinese national high-tech enterprise has a senior R&D team,dozens of innovative patents and a professional production factory (Zhengzhou Yidian) . ESINO's own platform is build on Ali Cloud and Tecent Wechat Program,use the IoT big data energy technology,can real time trace and manage the wholelife data on Li Battery.Our swapping cabinet have over 200 thousands user online cover 200 cities.We have service over millions user for tracking their asset from all over the countries. At ESINO we have always been committed to provide great service and new technology,following the national new energy policy and dual carbon goals,we provide a one-stop solution for rental and battery swap.
