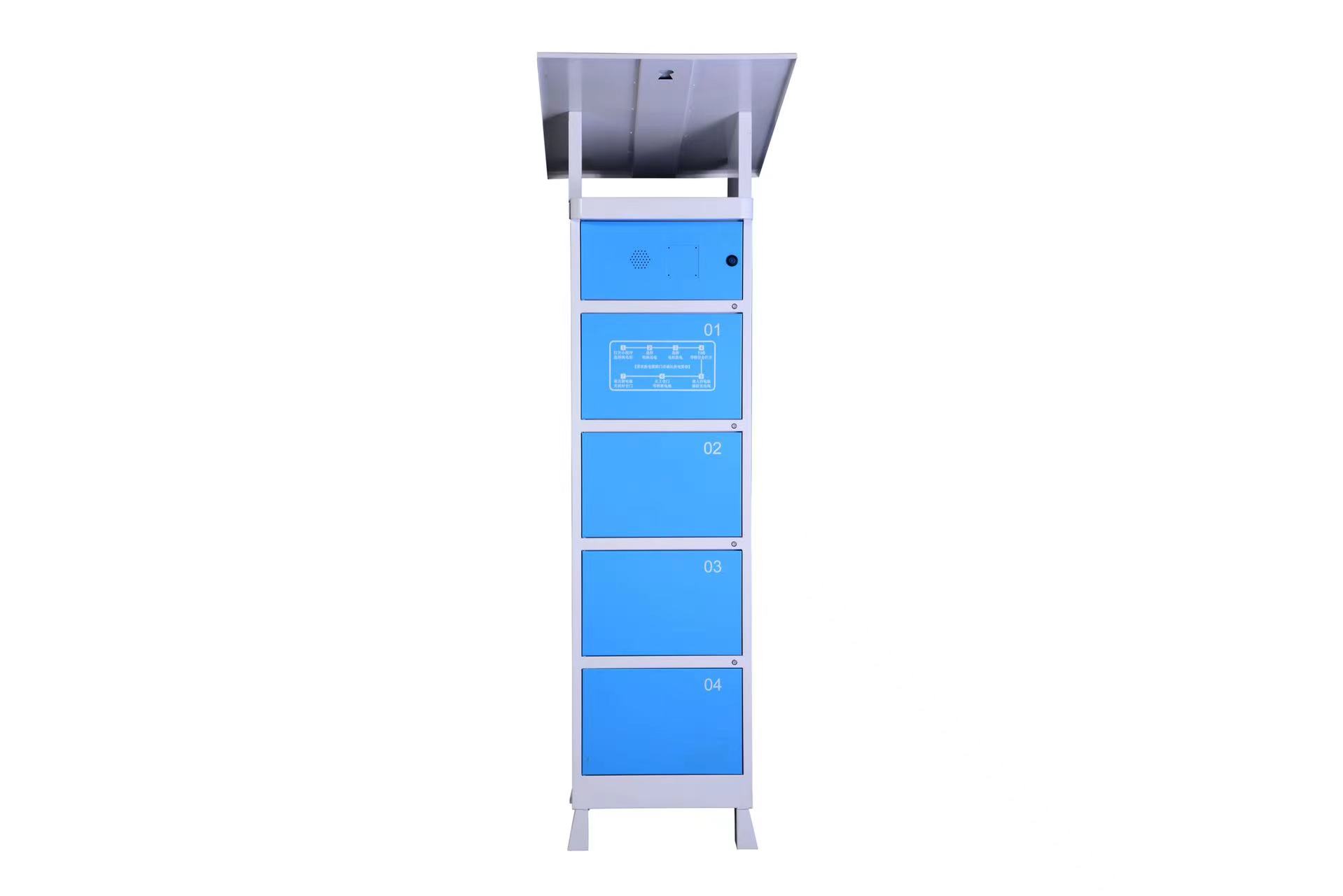

4 Slots for Swapping Battery Station
Model: ES-DG04
Date：2024-12-18 / Popularity： / Source：Esino
| ESINO Swapping Charging Cabinet | ||
| MODEL | ES-DG4 | |
| Specs | Rated Power | 9.6KW/800W each door |
| Charging System | LCD Screen Size | 10.1inch (Optional) |
| Door Size | 25*25*40CM | |
| Cabinet Size | 45*60*145CM | |
| Input Voltage | AC220V | |
| Charging Connector Type | 2+4/2+6 Connector | |
| Output Voltage | 43~87VDC | |
| Weight | 50KG | |
| Output Current | 10A | |
| Fire Protection | Independent Aerosol Fire Extinguishing for each cabin | |
| Electrical Data | Current Limit Protection Value | ≥110% |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±0.5% | |
| Ripple Factor | ≤±0.5% | |
| Efficiency | ≥98% | |
| Power Factor | ≥0.99(50% Above load) | |
| Harmonic Content THD | ≤5%(50% Above load) | |
| Charge Mode | Scan QR Code | |
| Payment Method | Scan Code Payment | |
| Networking | 4G | |
| Safety Function |
Over voltage protection, under voltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, lightning protection. Optional features: water immersion protection, hardware board power exchange, reverse power supply, Bluetooth power exchange |
|
| Environmental Indicators | Operation Temperature | -35°C ~ +55°C |
| Working Humidity | 5%~95% No Frost | |
| Working Altitude | <2000m | |
| Protection Grade | IP54 | |
| Cooling Method | Forced Air Cooling | |
| Noise Control | ≤60dB | |
| MTBF | 100,000 Hours | |

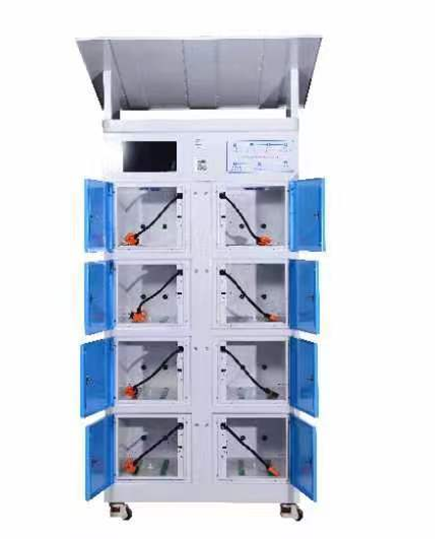

| Optional |
Standard Swapping Charging Cabinet without the LED screen and Canopy. For Optional LED screen is 80USD;For Optional Canopy is 36USD. |
|
Company Profile
ESINO was founded in 2008 HongKong and with the headquarters in ShenZhen from 2011. We're committed to providing the highest-quality Swapping Cabinet and GPS BMS with the Cloud Server.Be a Chinese national high-tech enterprise has a senior R&D team,dozens of innovative patents and a professional production factory (Zhengzhou Yidian) . ESINO's own platform is build on Ali Cloud and Tecent Wechat Program,use the IoT big data energy technology,can real time trace and manage the wholelife data on Li Battery.Our swapping cabinet have over 200 thousands user online cover 200 cities.We have service over millions user for tracking their asset from all over the countries. At ESINO we have always been committed to provide great service and new technology,following the national new energy policy and dual carbon goals,we provide a one-stop solution for rental and battery swap.
FEATURES:
1. Networking 4G
2. Payment Method Scan Code Payment
3. Charge Mode Scan QR Code
4. APP Control
5. Touch Screen control
6. charge time: 3-4 hours
7. Waterproof
8. Reverse charging
