Car GPS Tracker ES-20

Model: ES-20

Date:2019-08-16 / Popularity: / Source:Esino

Main Functions of ES20 OBD2 Sim Card GPS Tracker with Diagnostic Function and Driving Behavior Analysis

* OBD Diagnostic
VIN Identification
SIM Card or M2M Card Identification
Fault code detection

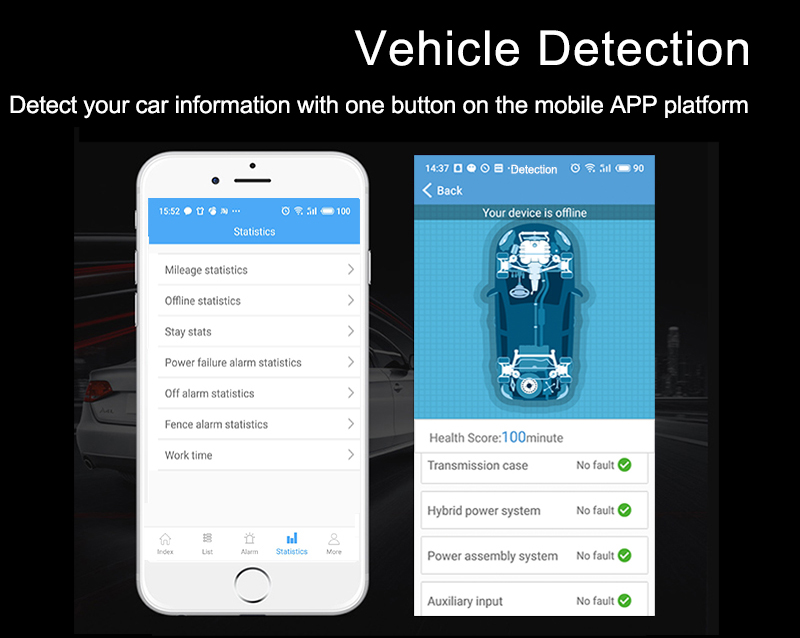

Vehicle condition detection reminder
Overspeed,Fatigue driving reminder

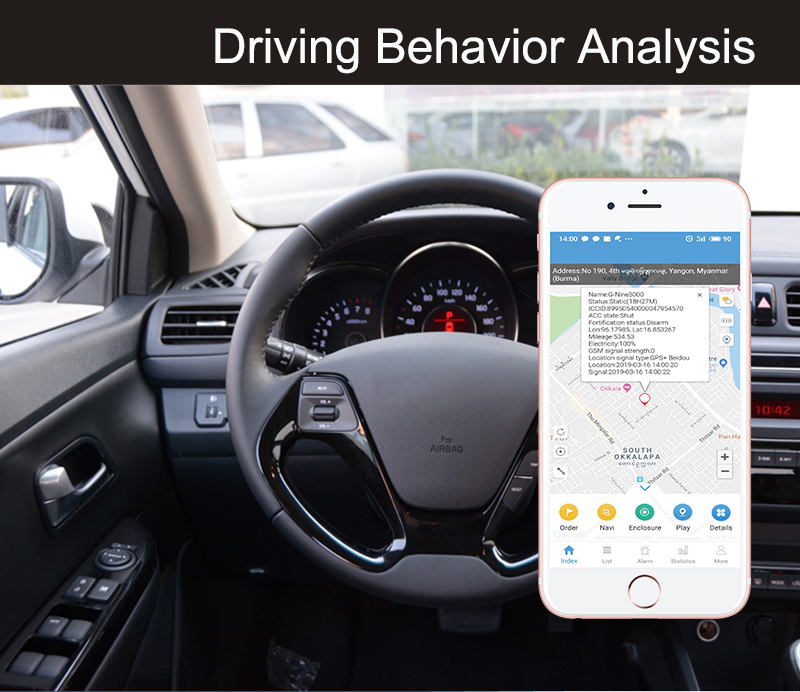

* Driving Behavior Analysis
Emergency acceleration
emergency brake
Highest speed/Average speed/Driving time/mileage/Fuel consumption/Driving score/Postage measurement
Average fuel consumption per 100km

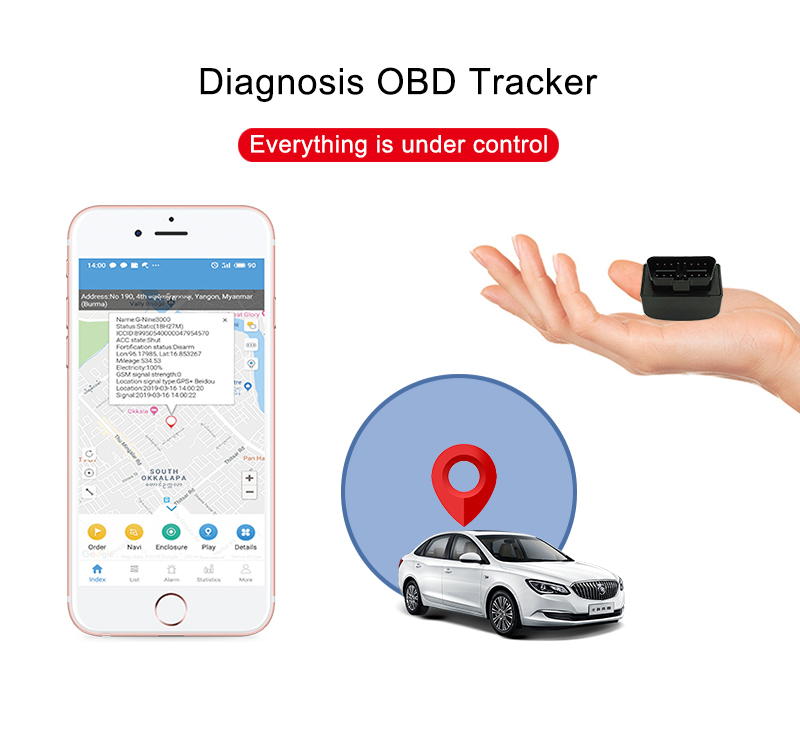

* GPS Positioning
Historical Track Playback
Real time tracking
ACC Detection
GEO Fence
Remove/Power Off Alarm

*Other Functions
Violation query
Insurance expiration reminder
Annual review expiration reminder

Specifications of ES20 OBD2 Sim Card GPS Tracker with Diagnostic Function and Driving Behavior Analysis

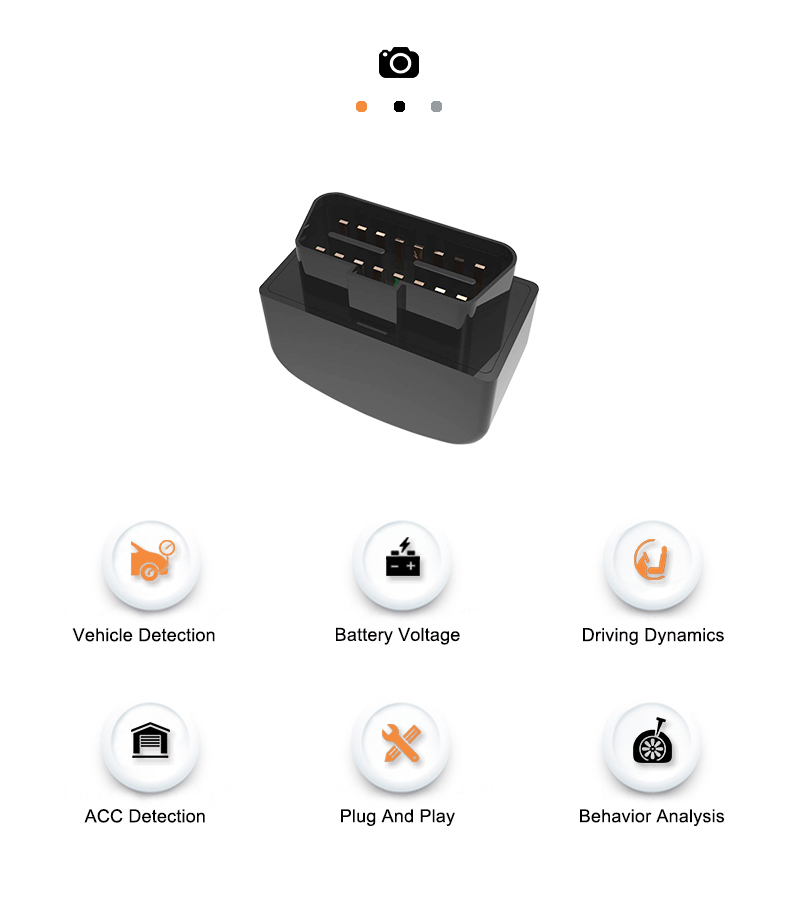

ES20 OBD2 GPS Tracker
Material ABS
Size 50*38*25mm
Weight 0.12kg
Color Black
Network 2G
Frequency 850/900/1800/1900MHz
Working Temperature: -20°C to +75°C
Working Current <110mA@12V
GPS Sensitivity -160dBm
GPS Positioning Accuracy 5-10CEP
Supported Vehicle Protocols Support OBDII protocol, Compliant with 90% vehicle after 2008,ISO-9141-2,ISO-14230(KW)KWP2000,ISO-15765, CANBUS
Working Voltage 9-30V DC
Interface OBD Port: Support 16 pin standard OBDII port.
Positioning Mode GPS, LBS
GSM Chip 7020
Working Humidity 5%-95%

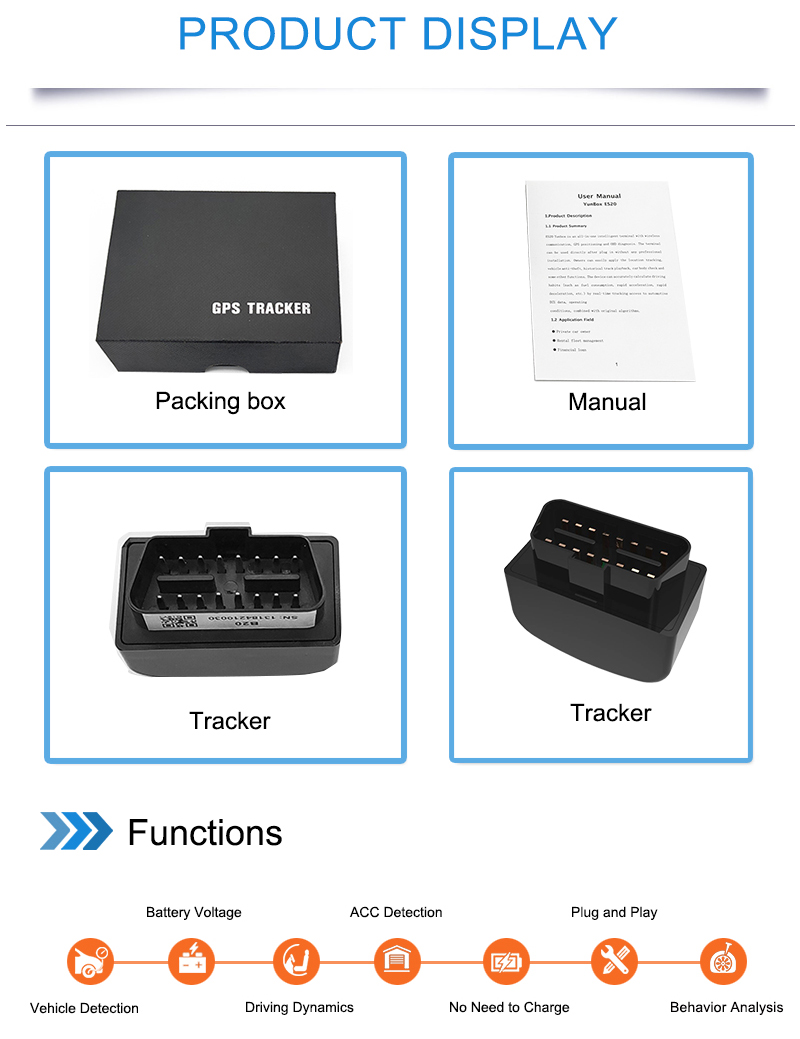

Packing Information
Accessories:
Host * 1
Manual * 1

Packing Details:
Product size:5*38*25mm
