4G OBD GPS Tracker C005 With DTC And OBD Data Detection

Model: ES-C005

Date:2022-01-08 / Popularity: / Source:Esino

ESINO 4G OBD GPS Tracker C005 With DTC And OBD Data Detection

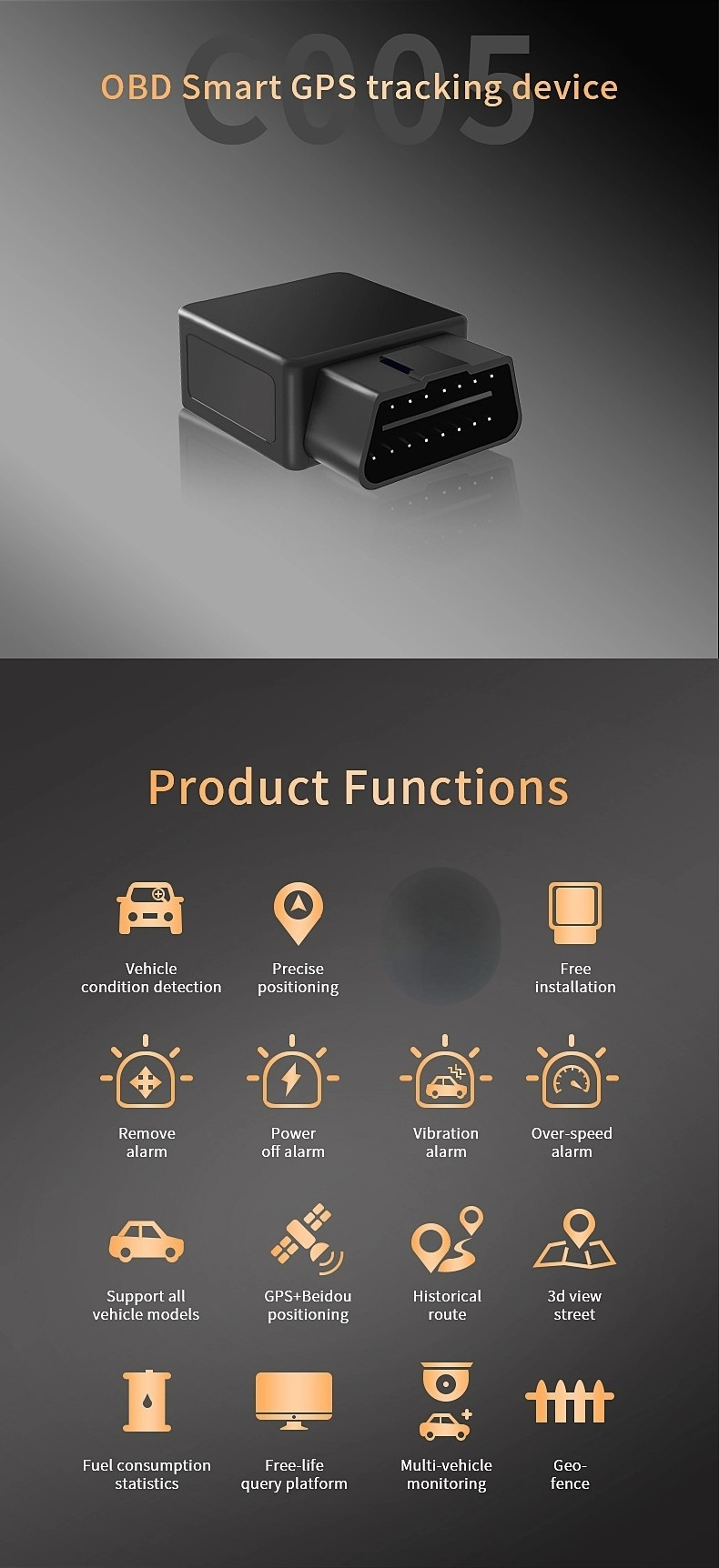

Features:

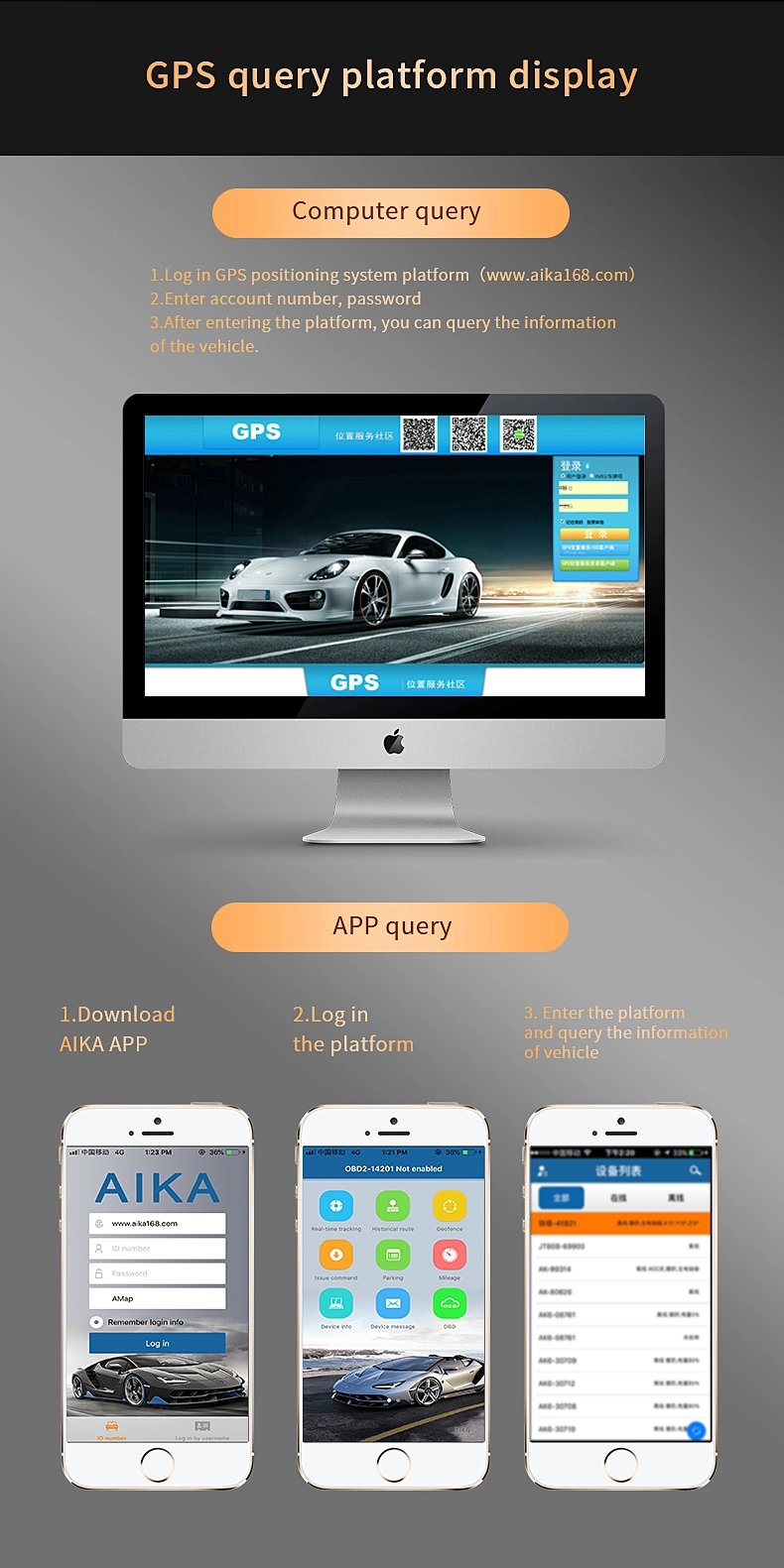

*Real-time Tracking;

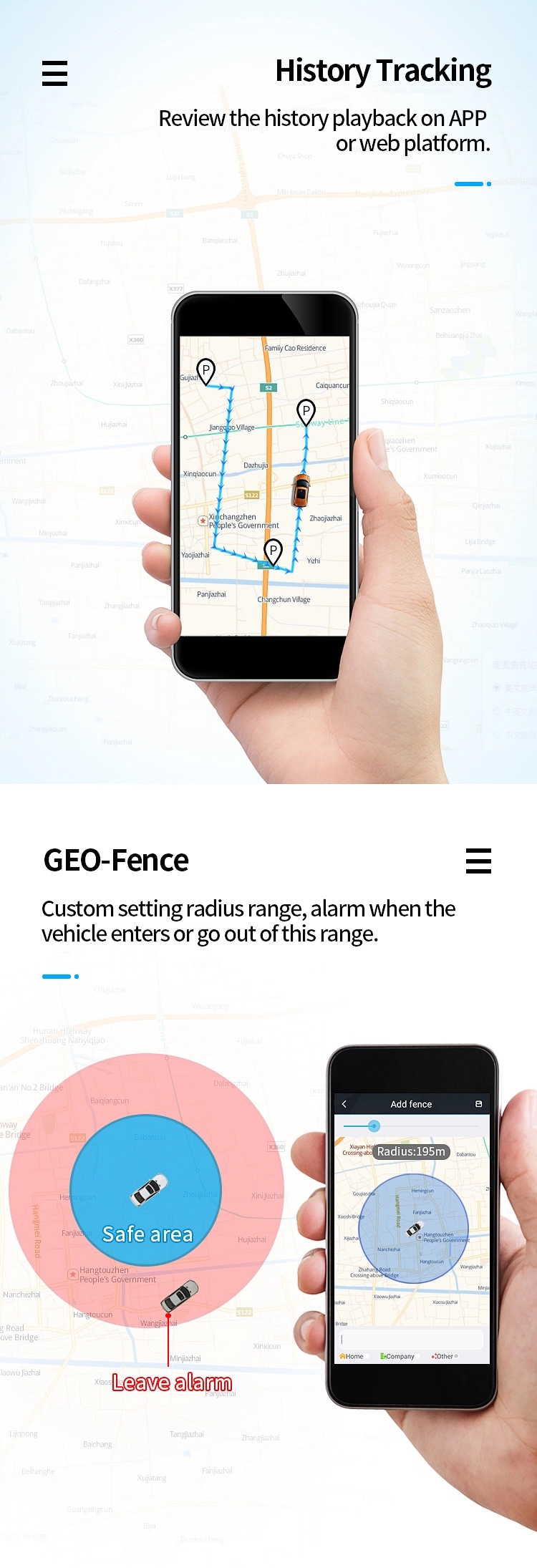

*Historical Track Playback;

*Power cut alarm;

*ACC Detection;

*Geo-fence;
*Overspeed Alarm Vibration alarm;
*Collision alarm.

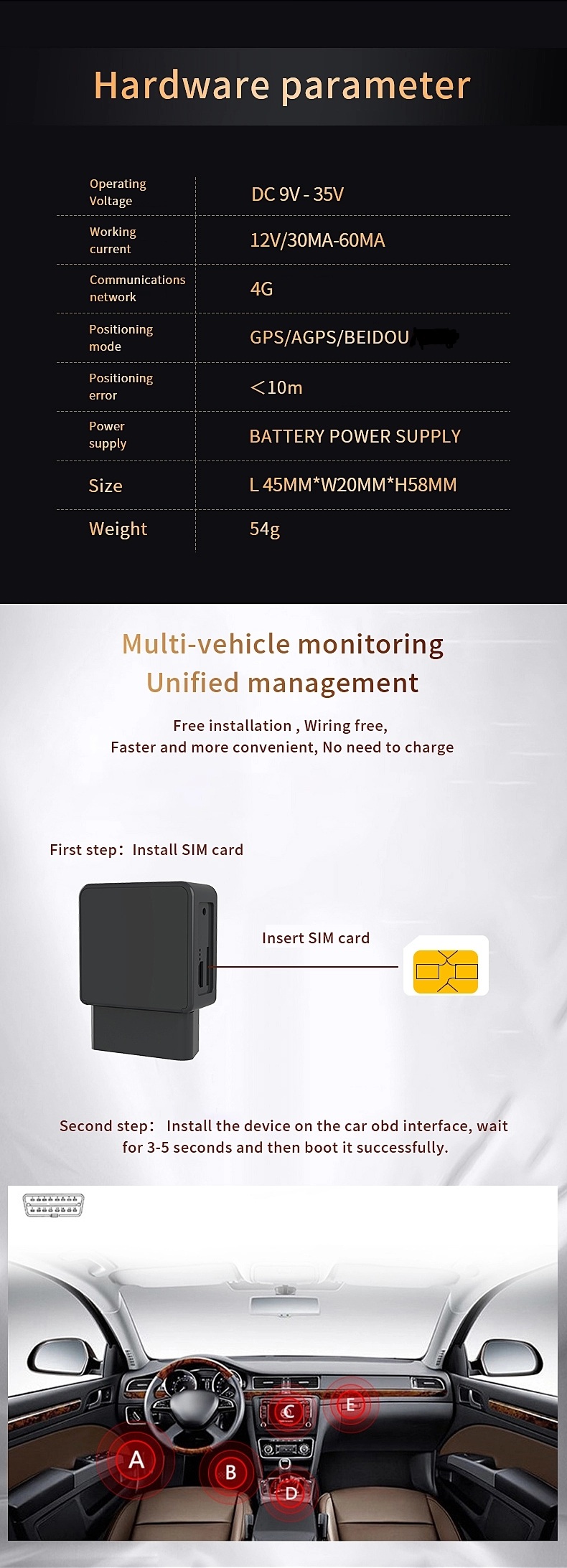

Specifications:

4G LTE OBD GPS Tracker C005 GPS Real-time Tracking Chip

Material

ABS

Size

58*45*20mm

Weight

0.12kg

Color

Black

Network

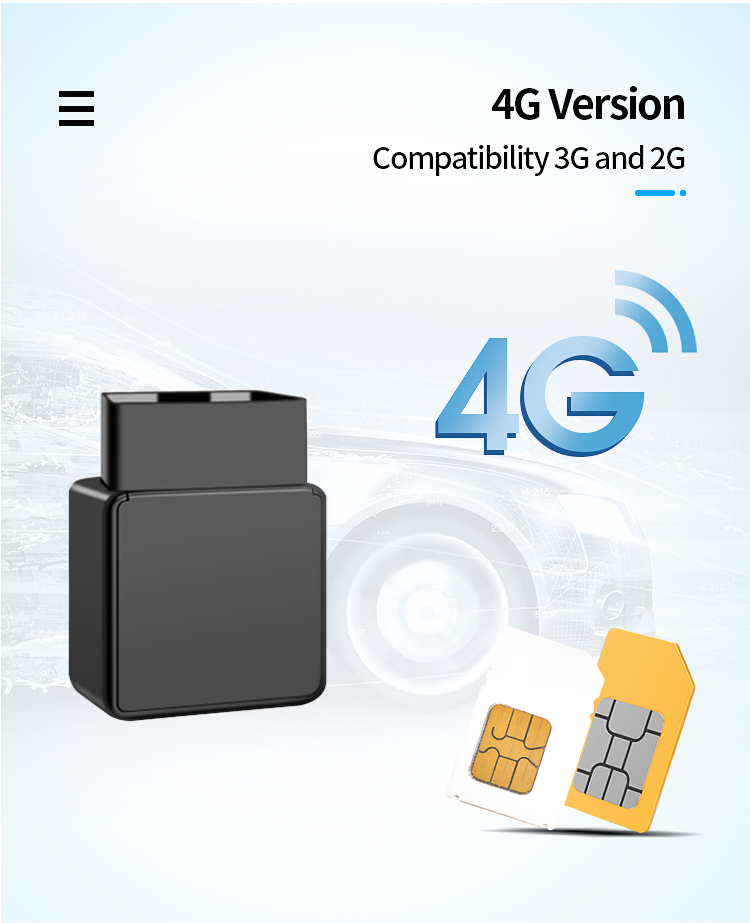

4G FDD B1/B3/B5/B8, 2G/GSM/GPRS

Frequency

850/900/1800/1900MHz

Working Temperature:

-20°C to +75°C

Working Current

35mA(ACC ON)

GPS Sensitivity

-160dBm

GPS Positioning Accuracy

5-10CEP

Supported Vehicle OBD2 Protocols

ISO9141-2
KWP2000_5BPS
KWP2000_FAST
CANBUS_11B_500K
CANBUS_29B_500K
CANBUS_11B_250K
CANBUS_29B_250K

Working Voltage

9-36V DC

Interface

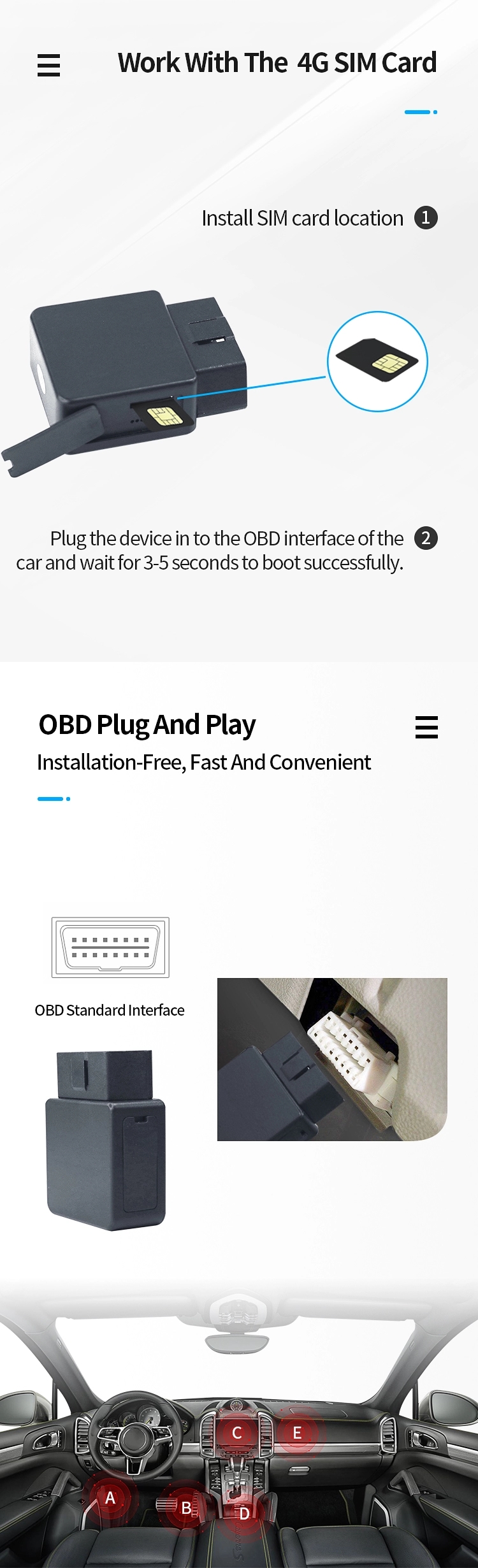

OBD Port: Support 16 pin standard OBDII port.

Positioning Mode

GPS, LBS

GPS Chip

 AT6558D

Working Humidity

5%-95%







Author:Esino
