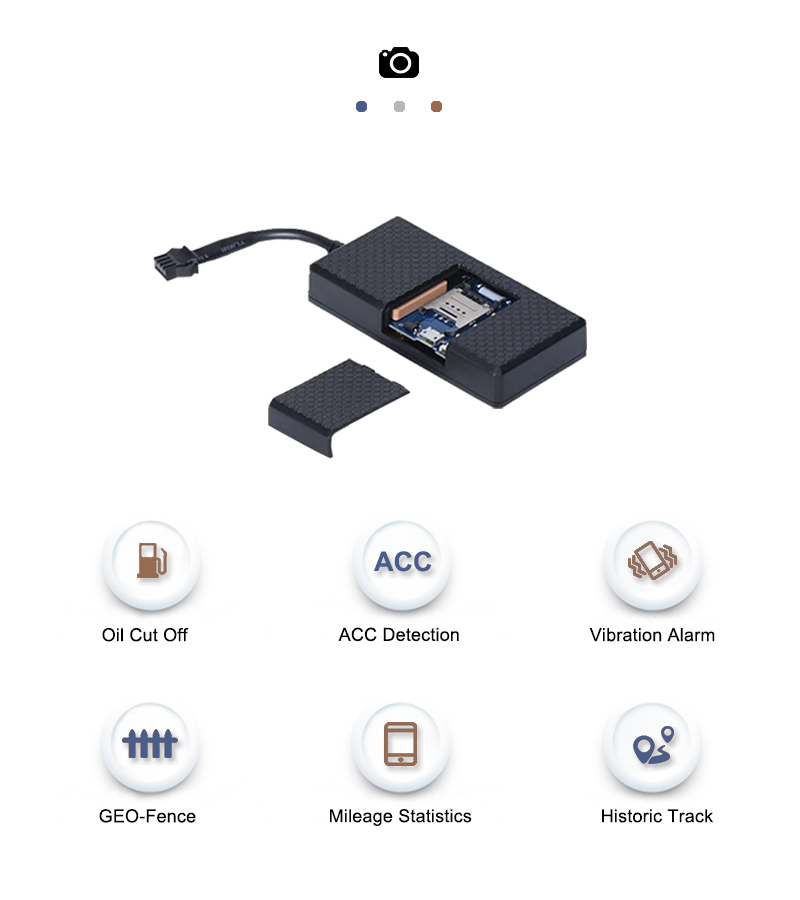

Vehicle GPS Tracker ES-GP402

Model: ES-GP402

Date:2018-10-23 / Popularity: / Source:Esino

Item  Specification
Power supply voltage range 9-100v
Built-in battery  (180 mAh (3.7V) optional )
Volume 90mm × 45 mm × 17mm
Weight 70g Included battery
Working humidity of the module -40°C ~ +85°C
Working humidity 5% to 95% Non-condensing
Communication module  Quectel EC20 4G communication module
Sensor  Vibration sensor
Antenna Built-in GPS/BD/4G antenna
Bands LTE FDD: B1/B3
LTE TDD: B38/B39/B40/B41 TDSCDMA: B34/B39 WCDMA: B1
CDMA 1x/EVDO: BC0
GSM: 900/1800MHz
Data transmission LTE:
LTE FDD: (Max.)50Mbps (UL)
LTE TDD: (Max.)18Mbps (UL)
DC-HSPA+: (Max.)5.76Mbps (UL)
UMTS: (Max.)384Kbps (UL)
TD- SCDMA: (Max.)2.2Mbps (UL)
EVDO: (Max.)5.4Mbps (UL)
EDGE: (Max.)236.8Kbps (UL)
GPRS:(Max.)85.6Kbps (UL)
GPS UBLOX 8030
Protocol TCP/UDP/PPP/FTP/FTPS/NDIS/HTTP/HTTPS/
SMTP/SMTPS/MMS*/NTP/PING/DTMF/FlLE/
NITZ/CMUX/QMI
GPS sensitivity --162Db
GPS band L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channel 56 channel all-in-view tracking
Location accuracy 5 meters, 2D RMS
Speed accuracy 0.1 m/s
Time accuracy Satellite Time 1 microsecond synchronization
Default data WGS-84
Update time  Average 0.1 sec.
Hot start Average 0.1 sec.
Warm start Average 30 sec.
Cold satart Average 32 sec.
Max height 18,000 meters (60,000 feet) max.
Max speed 515 meters/second (1000 knots) max.
Max acceleration Less than 4g
Instantaneous displacement 20 m/sec
Standby time 1 hour
SIM Card Micro SIM card
LED Light  2 Led lights: GPS/GSM status
